  Portal Stone Installation Sequence The Project Portfolio of W. Oskar Kempf

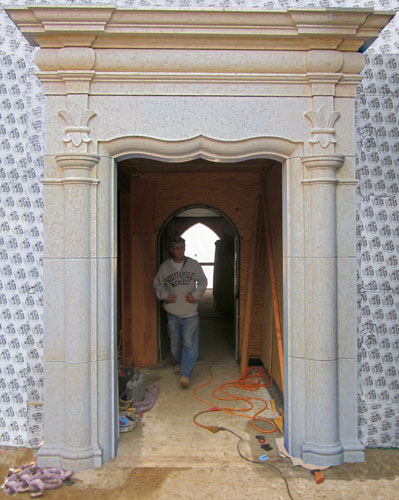

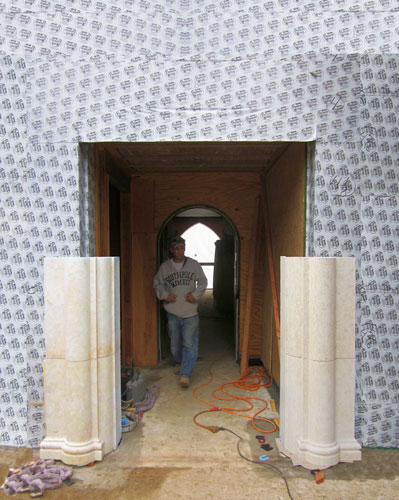

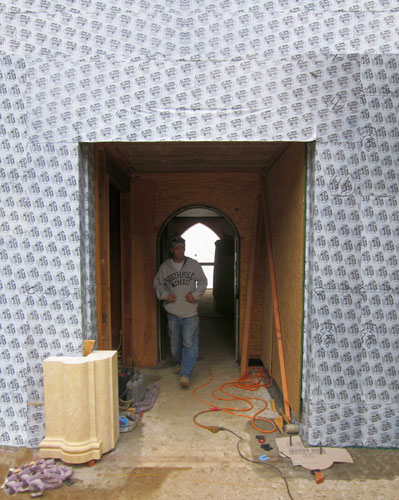

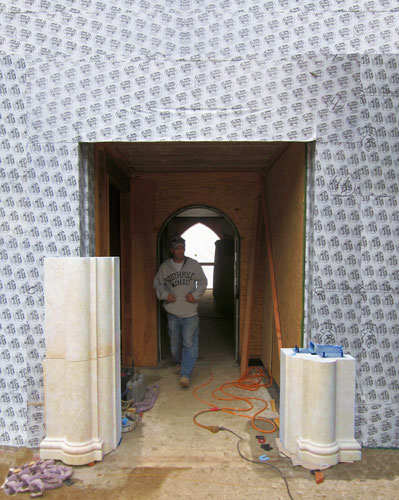

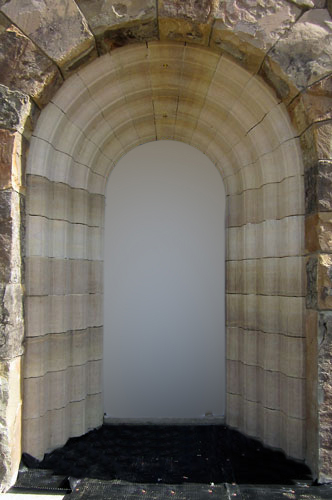

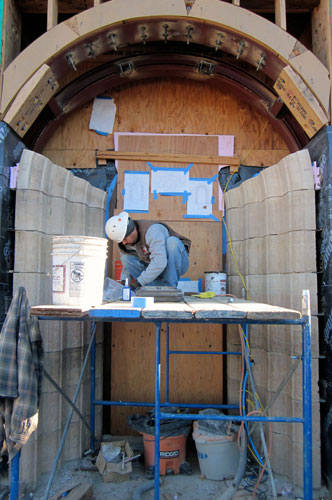

The setting of solid arch and portal stones are shown step by step.

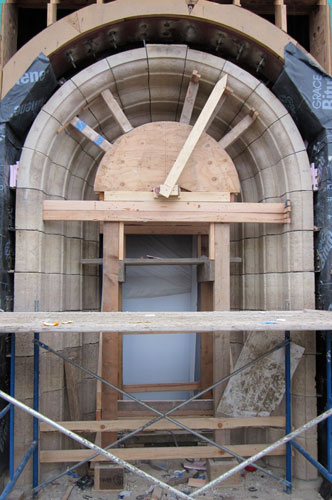

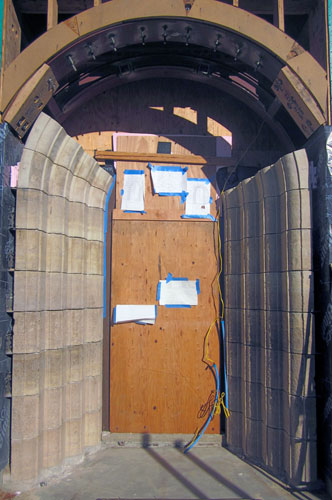

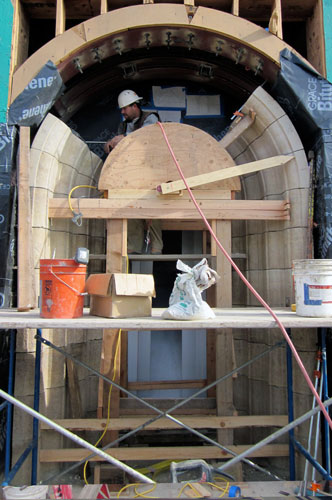

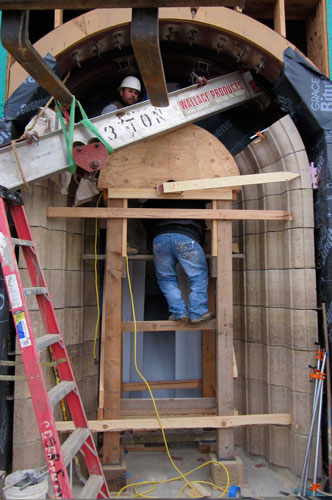

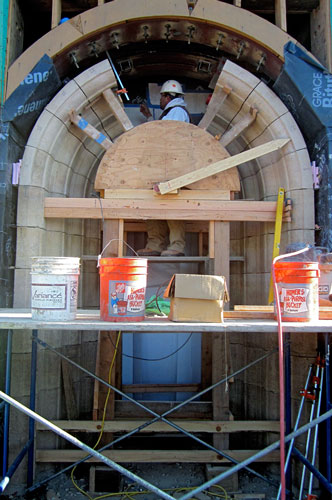

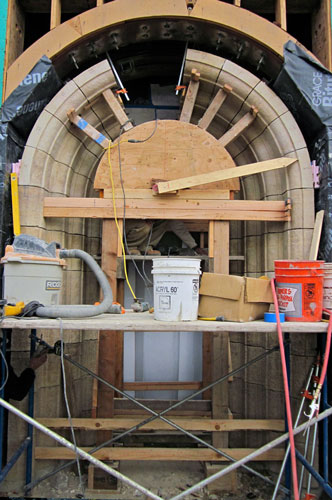

Each large single portal voussoir is set in sequence on a lower bridge with additional extensions supporting the upper arch intrados.

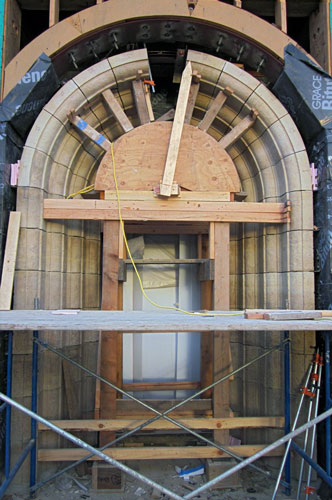

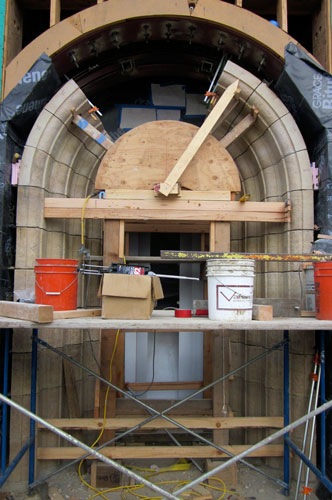

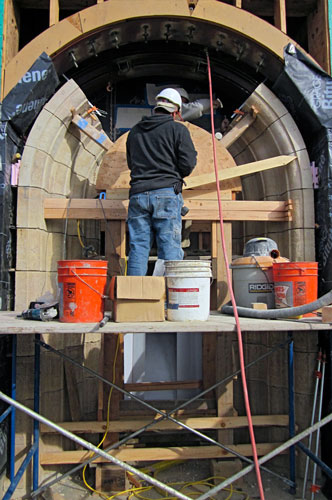

The intrados curve is controlled by a movable trammel guide, fixed to the center point of the arch diameter.
